LaTeX 多图排版

发表于 更新于 本文字数： 3.6k 阅读时长 ≈ 3 分钟

图片排版

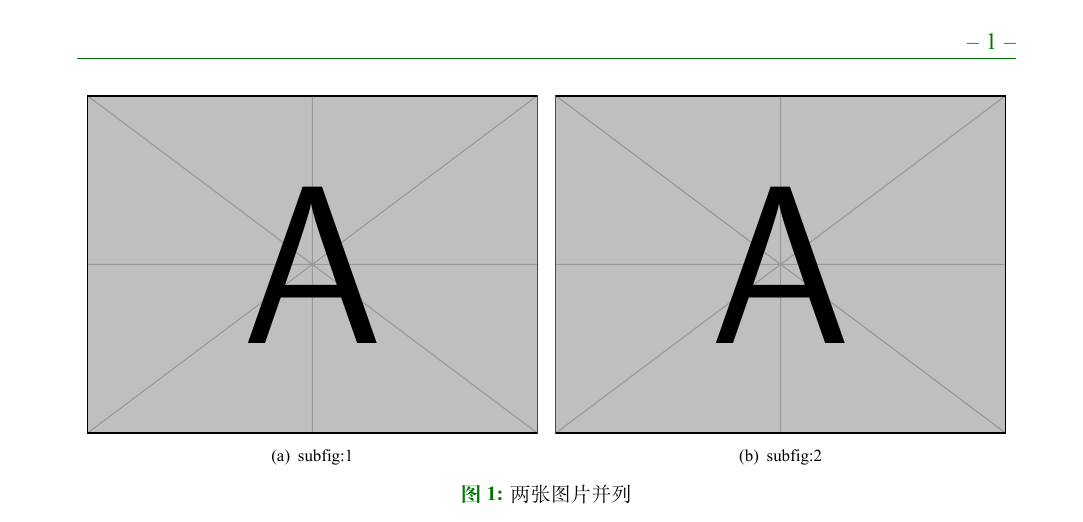

两图并排

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
\documentclass{ctexart}
\usepackage{coffeelize}
\usepackage{graphicx}
\usepackage{subfigure}

\begin{document}

\begin{figure}[htbp]
 \centering
 \subfigure[subfig:1]{
  \includegraphics[width=0.48\textwidth]{example-image-A}
 }
 \subfigure[subfig:2]{
  \includegraphics[width=0.48\textwidth]{example-image-A}
 }
 \caption{两张图片并列}
 \label{fig:subfigure_example1}
\end{figure}

\end{document}

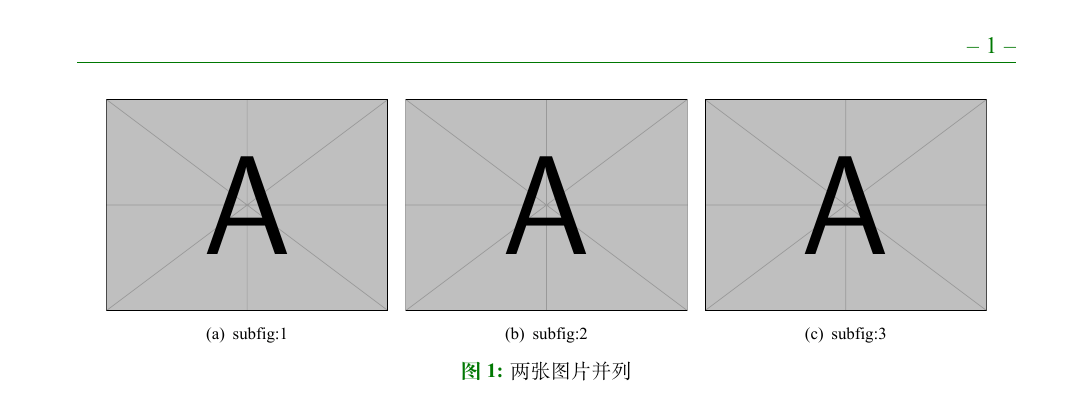

三图并排

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
\documentclass{ctexart}
\usepackage{coffeelize}
\usepackage{graphicx}
\usepackage{subfigure}

\begin{document}

\begin{figure}[htbp]
 \centering
 \subfigure[subfig:1]{
  \includegraphics[width=0.3\textwidth]{example-image-A}
 }
 \subfigure[subfig:2]{
  \includegraphics[width=0.3\textwidth]{example-image-A}
 }
 \subfigure[subfig:3]{
 \includegraphics[width=0.3\textwidth]{example-image-A}
 }
 \caption{两张图片并列}
 \label{fig:subfigure_example1}
\end{figure}

\end{document}

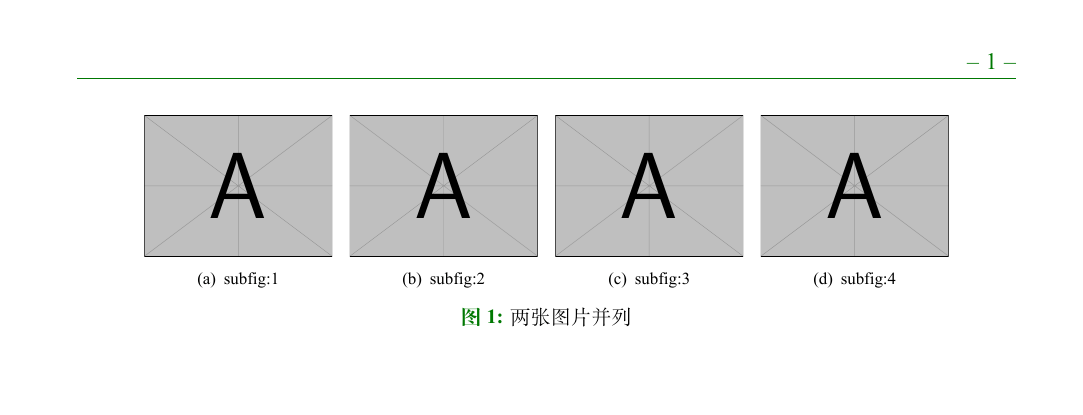

四图并排

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
\documentclass{ctexart}
\usepackage{coffeelize}
\usepackage{graphicx}
\usepackage{subfigure}

\begin{document}

\begin{figure}[htbp]
 \centering
 \subfigure[subfig:1]{
  \includegraphics[width=0.2\textwidth]{example-image-A}
 }
 \subfigure[subfig:2]{
  \includegraphics[width=0.2\textwidth]{example-image-A}
 }
 \subfigure[subfig:3]{
 \includegraphics[width=0.2\textwidth]{example-image-A}
 }
 \subfigure[subfig:4]{
 \includegraphics[width=0.2\textwidth]{example-image-A}
 }
 \caption{两张图片并列}
 \label{fig:subfigure_example1}
\end{figure}

\end{document}

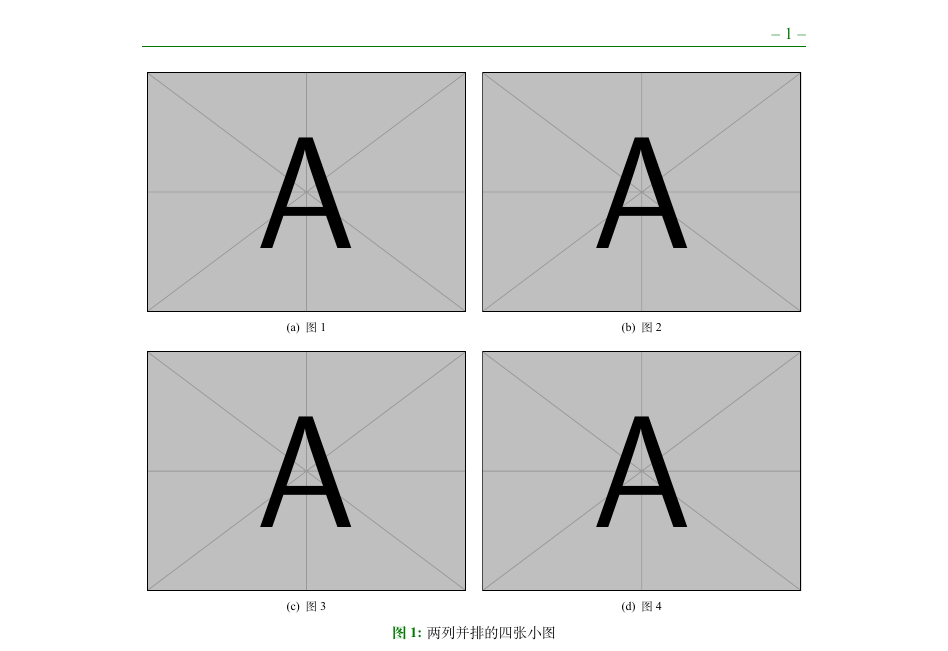

两行四图并排

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
\documentclass{ctexart}
\usepackage{coffeelize}
\usepackage{graphicx}
\usepackage{subfigure}

\begin{document}

\begin{figure}[htbp]
 \centering
 \subfigure[图1]{\includegraphics[width=0.48\linewidth]{example-image-A}}\quad
 \subfigure[图2]{\includegraphics[width=0.48\linewidth]{example-image-A}}
 \\
 \subfigure[图3]{\includegraphics[width=0.48\linewidth]{example-image-A}}\quad
 \subfigure[图4]{\includegraphics[width=0.48\linewidth]{example-image-A}}
 \caption{两列并排的四张小图}
 \label{fig:subfigure_example4}
\end{figure}

\end{document}

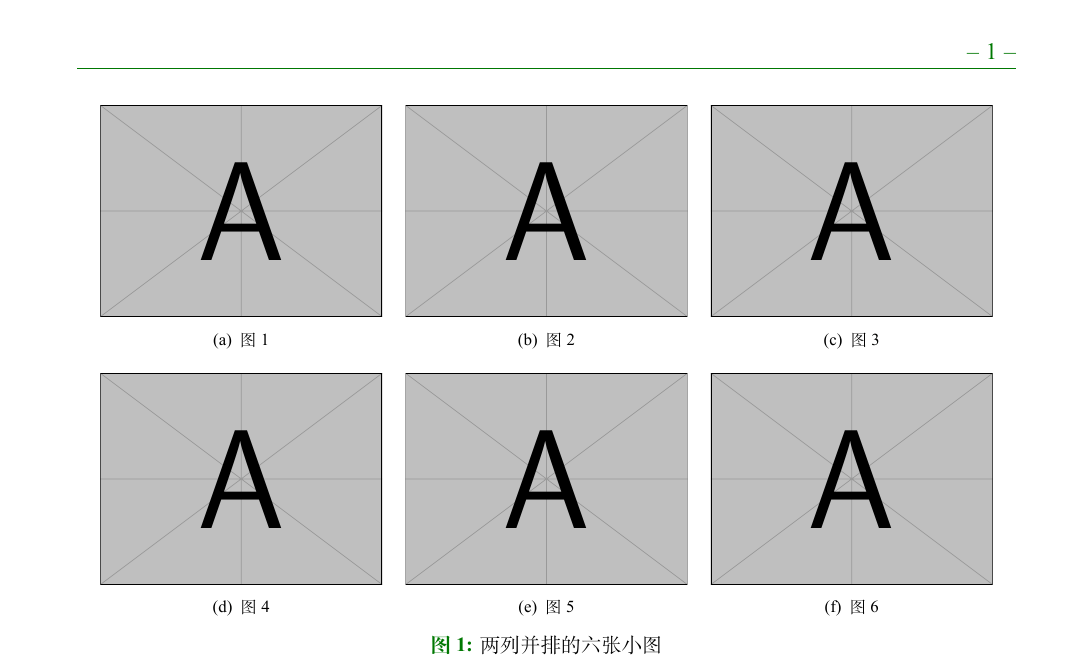

两行六图并排

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
\documentclass{ctexart}
\usepackage{coffeelize}
\usepackage{graphicx}
\usepackage{subfigure}

\begin{document}

\begin{figure}[htbp]
 \centering
 \subfigure[图1]{\includegraphics[width=0.3\linewidth]{example-image-A}}\quad
 \subfigure[图2]{\includegraphics[width=0.3\linewidth]{example-image-A}}\quad
 \subfigure[图3]{\includegraphics[width=0.3\linewidth]{example-image-A}}
 \\
 \subfigure[图4]{\includegraphics[width=0.3\linewidth]{example-image-A}}\quad
 \subfigure[图5]{\includegraphics[width=0.3\linewidth]{example-image-A}}\quad
 \subfigure[图6]{\includegraphics[width=0.3\linewidth]{example-image-A}}
 \caption{两列并排的六张小图}
 \label{fig:subfigure_example4}
\end{figure}

\end{document}
